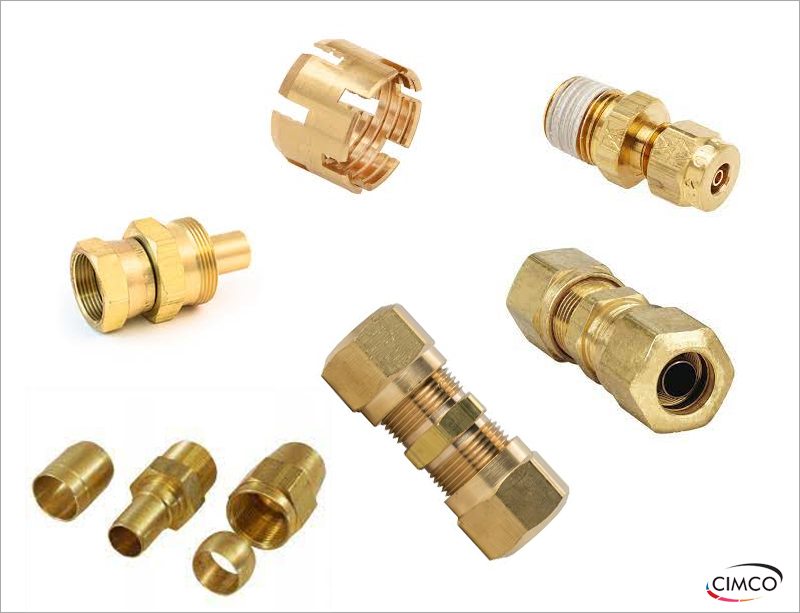

Brass Air Brake fittings

• D.O.T Air Brake (NT) Sleeve
• D.O.T Air Brake (NT) Nut
• D.O.T Air Brake (NT) 45º° Male Elbow
• D.O.T. Air Brake (NT) Union
• D.O.T Air Brake (NT) Male Connector
• D.O.T Air Brake (NT) 90° Male Elbow
• D.O.T Air Brake (NT) Male Run Tee
• D.O.T Air Brake (NT) Male Branch Tee

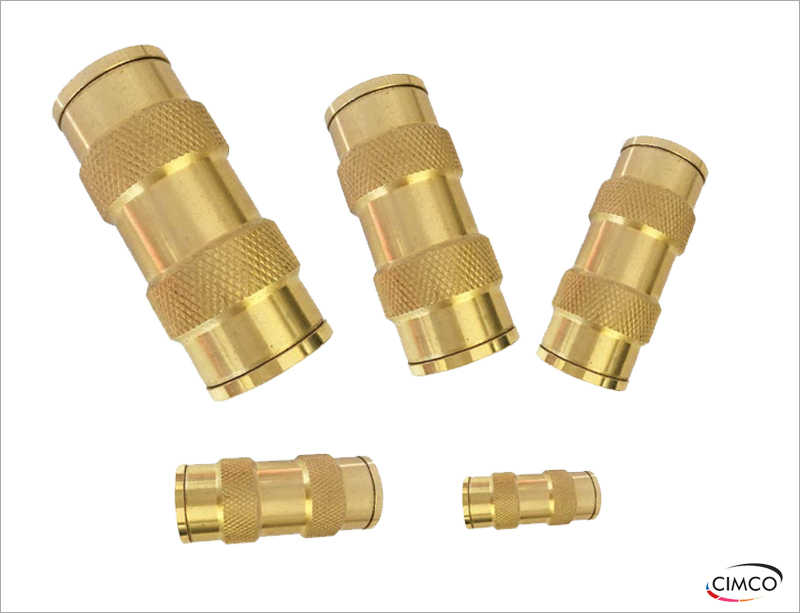

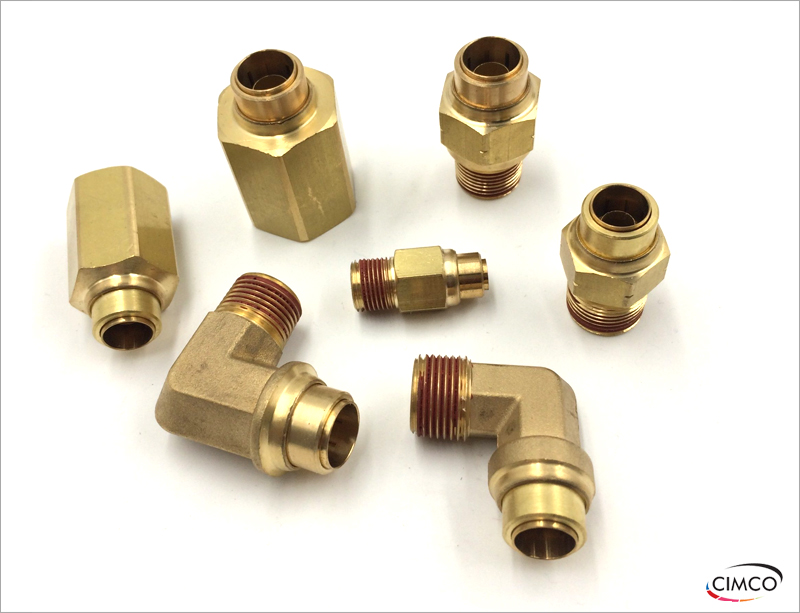

NYLON TUBE AIR BRAKE FITTINGS
Meets D.O.T air brake specifications. Use with S.A.E.J844 type A and B nylon tubing. Easy to assemble, no flaring needed. Also meets S.A.E. standards, S.A.E.J246 and S.A.E.J1131. To assemble, cut tubing squarely. Insert tubing into fitting until bottomed on seat. Then tighten nut so one thread remains visible on fitting body.

Working temperature
–40�F to 200�F

Material
Bar Stock� CA360
Forged CA377

Working pressure
up to 150 psi

Applications
air brake system and cab air controls

HOSE ENDS AIR BRAKE FITTINGS
Designed for use on truck and bus compressed air brake systems. Meets S.A.E. J1402C (formerly Type B) and D.O.T. FMVSS-106 specifications. Intended exclusively for use with 876 and 878 hose.

Working temperature
–63�F to 250�F

Material
BRASS CA360

Working pressure
125 psi Maximum burst pressure:900 psi

Applications
truck and bus compressed air brake systems

COPPER TUBE AIR BRAKE FITTINGS
Meets requirments of S.A.E. AND DOT as indicated by configuration.

Working temperature
–63�F to 250�F

Material
BRASS CA360

Working pressure
125 psi Maximum burst pressure:900 psi

Applications
Air brake systems on heavy trucks and trailers that are plumbed with copper tubing
