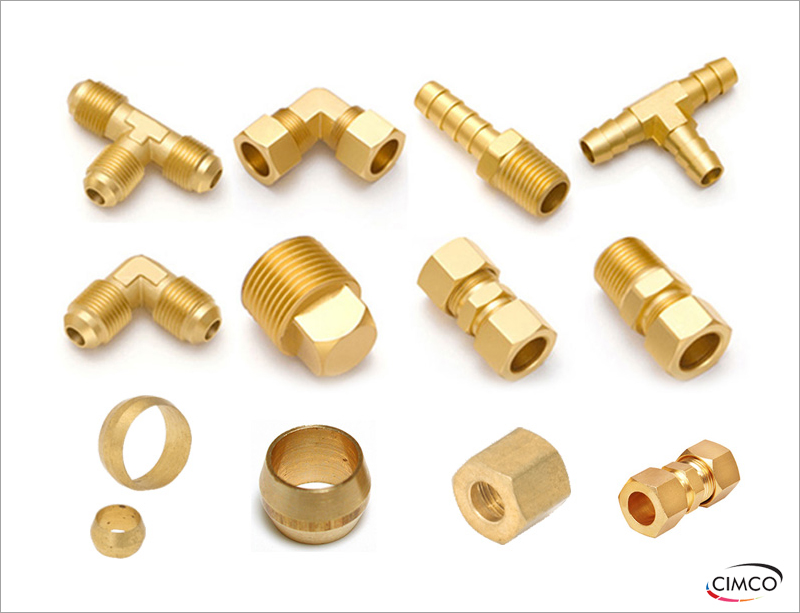

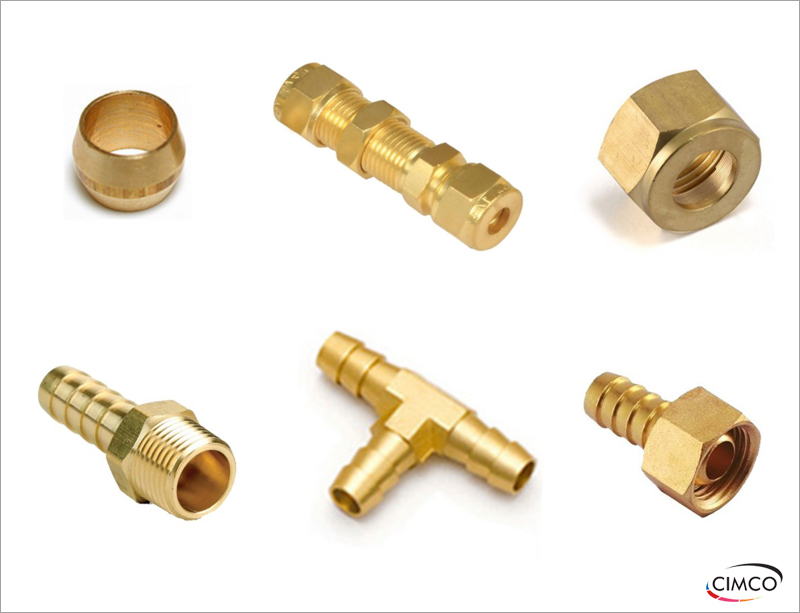

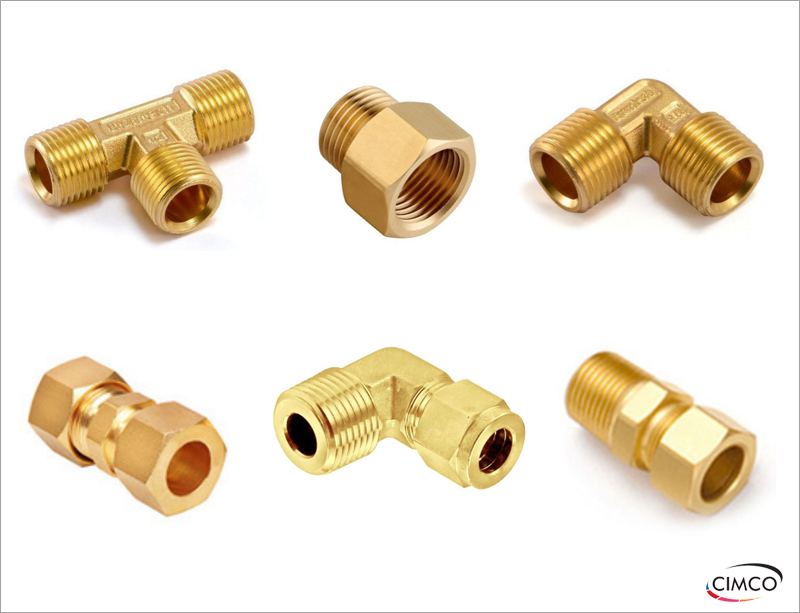

Brass Compression Fittings

• NUT
• SLEEVE/FERRULE/OLIVE
• TEE UNION
• 90° Male Elbow Connector
• UNION
• MALE CONNECTOR
• BRANCH TEE
• RUN TEE
• FEMALE CONNECTOR
• CAP NUT
• 90° ELBOW UNION
• 90° FEMALE ELBOW
• REDUCING UNION
• 45º° MALE ELBOW
• BULK HEAD UNION

Manufactured for low and medium pressure applications, they should not be used when excessive vibration or tube movement is experienced. Assembly does not require flaring or soldering. To make connection, place nut and then sleeve over tubing and insert tube into body of fitting as far as possible. When nut is tight the wedging action of sleeve between body and nut create a tight leak free connection

Recommended uses
Copper, brass and aluminum tubing

Material
Bar Stock CA360
Forged CA377

Working pressure
Dependent on temperature and type of tubing

Application
air, oil, water and natural gas line
