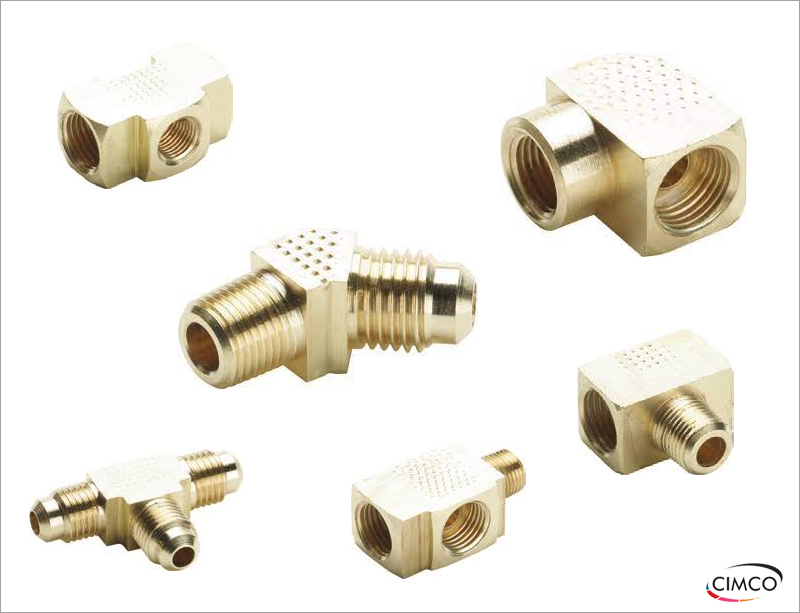

Brass SAE 45º fittings

• FLARE LONG NUT
• FLARE FORGED CAP NUT
• FLARE EXTRA LONG NUT
• FLARE SHORT NUT
• FLARE FORGED SHORT NUT
• FLARE FORGED REDUCING SHORT NUT

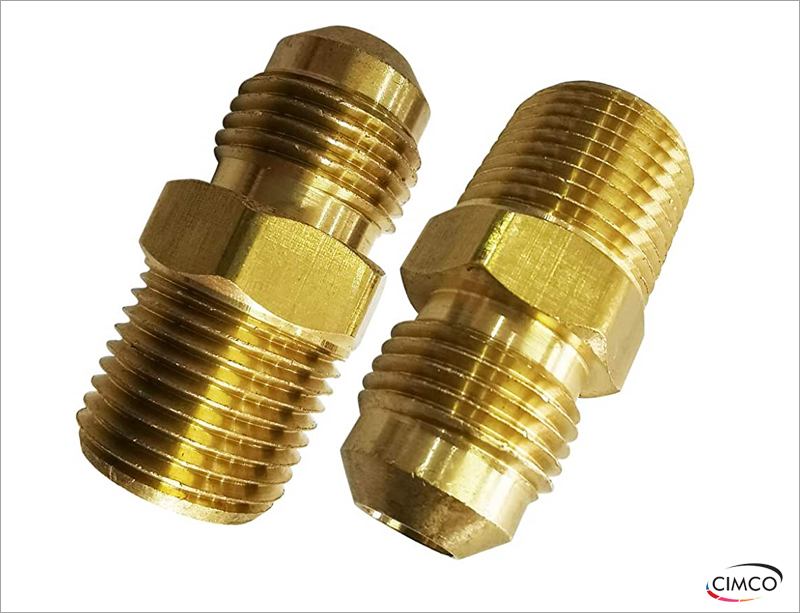

• FLARE MALE CONNECTOR
• FLARE FEMALE CONNECTOR
• FLARE SHORT PLUG
• FLARE TEE UNION
• FLARE BRANCH TEE

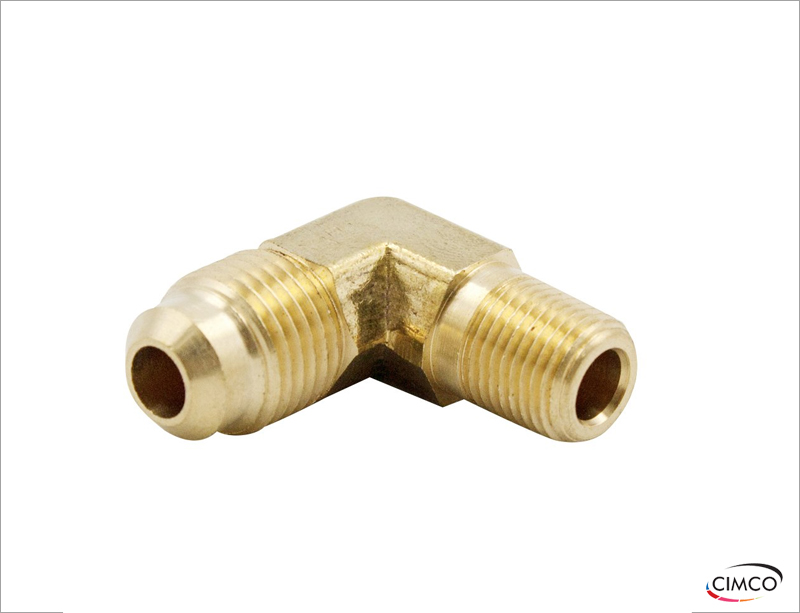

• 90º FLARE MALE ELBOW
• 45º FLARE MALE ELBOW

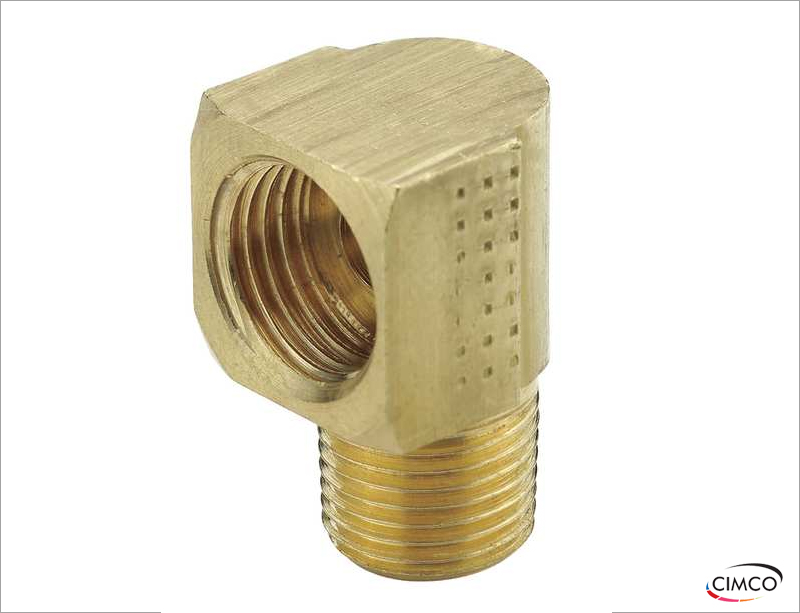

• 90º FLARE FEMALE ELBOW
• FLARE UNION
• FLARE REDUCING UNION
• TUBE COUPLING SWIVEL FLARE
• FLARE CAP NUT
• FLARE FORGED LONG NUT

Manufactured in accordance with S.A.E. A long nut is available for applications with excessive vibration. To make a connection, place nut with threaded end toward tubing end to be flared. Flare tubing to create a 45º�flare. Tube flare is clamped between nut and fitting flare when screwed together. A leak proof, metal-to-metal joint is created when assembly is tightened with a wrench. Disconnecting and reconnecting do not weaken the fitting joint.

Recommended uses
copper, brass, aluminum and welded steel hydraulic tubing that can be flared

Working temperature
�65�F to 250�F

Material
Bar Stock� CA360
Forged CA377

Working pressure
depends on temperature and the type of tubing used

Application
fuel, air, oil, water, LP and natural gas lines
